2025 Mobile Base Fixed PoC Digital Radio

Description

Description

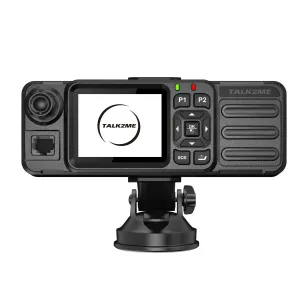

2025 Mobile Base PoC Digital Radio

Includes first year of NORTH AMERICAN service.

Plan Details below:

Package Contents:

Your package contains the following items:

• 25 Mobile Base Radio
• 12V Car Adapter
• Hand Microphone
• Mounting Bracket
• GPS Antenna
• LTE Antenna
• Manual

Specifications:

25 Mobile Base CAT1 PoC Radio

Technical specification
Model			25 Mobile Base
Device name			25 Mobile Base
Operating voltage			DC：12V
Network standard			LTE
Frequency			CAT1 – LTE Bands  B1/ B2/B3/B4/B5/B7/B8/B12-17/B13/B14/B66
Maximum transmitting power			TDD-LTE Power Class 1（23 +/-2dBm） FDD-LTE Power Class 1（23 +/-2dBm）
Receiving sensitivity			TDD-LTE -94 dBm(10MHZ) FDD-LTE -94 dBm(10MHZ)
Rated audio power			1000mW
Power supply mode			AC220V to DC12V/ Vehicle 12V (cigarette lighter)
Antenna			External PCB antenna
Operating temperature			-20℃ ~ +50℃
Weight			186g
Size：Length x Width x thickness (mm)			166*61*35（without antenna）
SIM card			Standard size dual SIM card
GPS
Frequency	1575.42MHz	Tracking sensitivity		-155dBm
Acquisition sensitivity	-143dBm	First positioning time (outdoor)		Warm start：4s
				Cold start：55s
Update rate	2-4HZ	Antenna		Active antenna
Power dissipation	35mA	View		Local latitude and longitude display and platform scheduling software

Promotions:

• NONE

UPC: 791034227700
